ID # 36083770

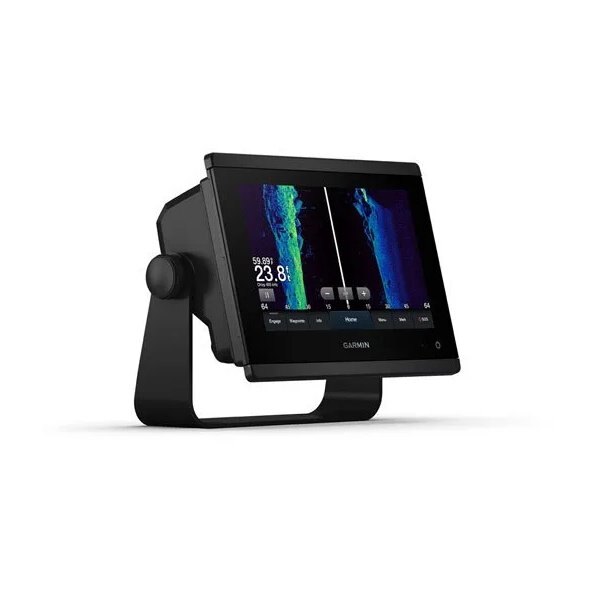

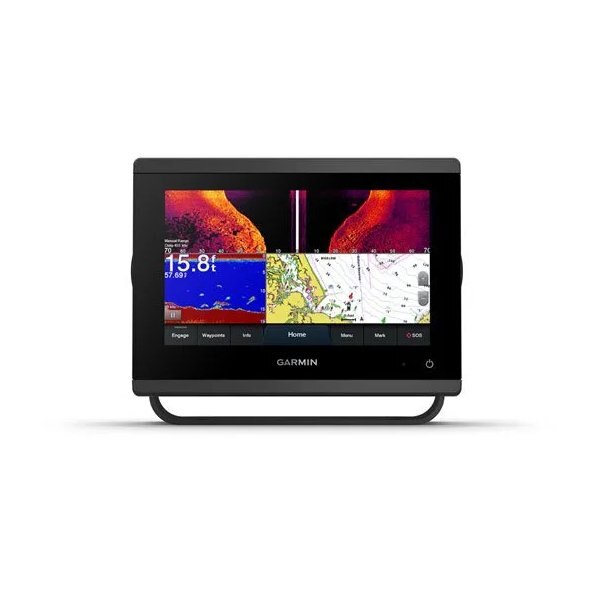

Garmin GPSMAP® 743xsv
Call for Price
Overview
Specifications
see the world below.
made for your helm.
sail and navigate with ease.
general
maps & memory
sensors
electrical features
built-in maps
optional map support
chartplotter features
sonar features & specifications
connections
in the box
|
GET A SHARPER VIEW FROM YOUR CONNECTED HELM With its sleek design, powerful processing and upgraded IPS display, this advanced 7”, 9” or 12” chartplotter integrates seamlessly into your Garmin marine system. |
|
Model
010-02365-03
Category Name
Boat
Year
2024
Sale Type
New
Manufacturer
Garmin
See The World Below.
|

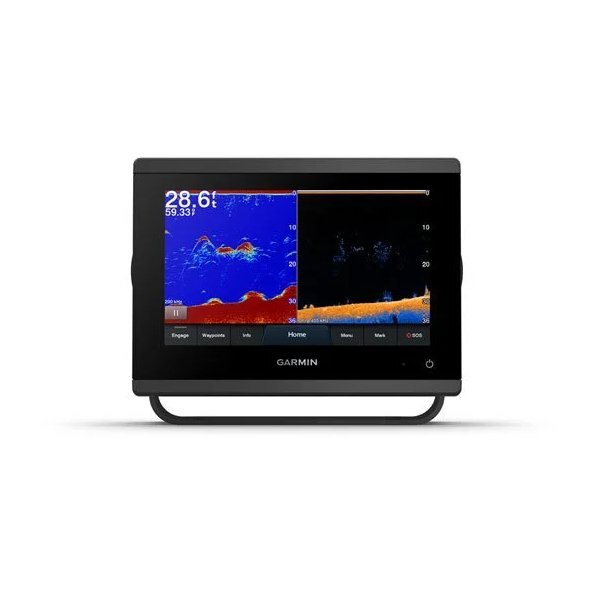

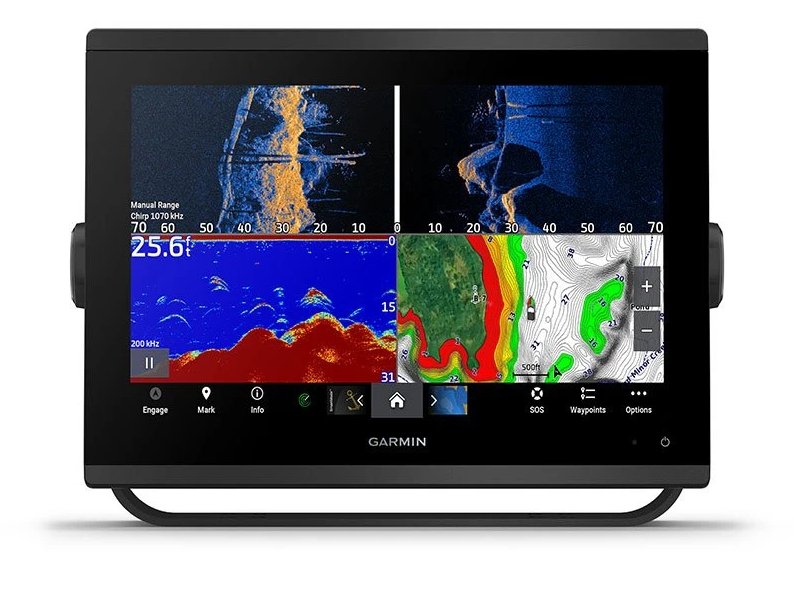

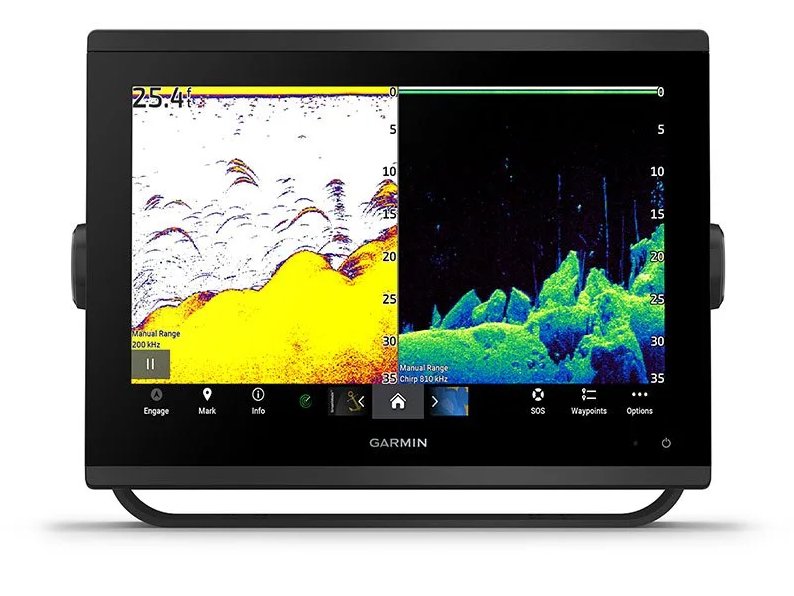

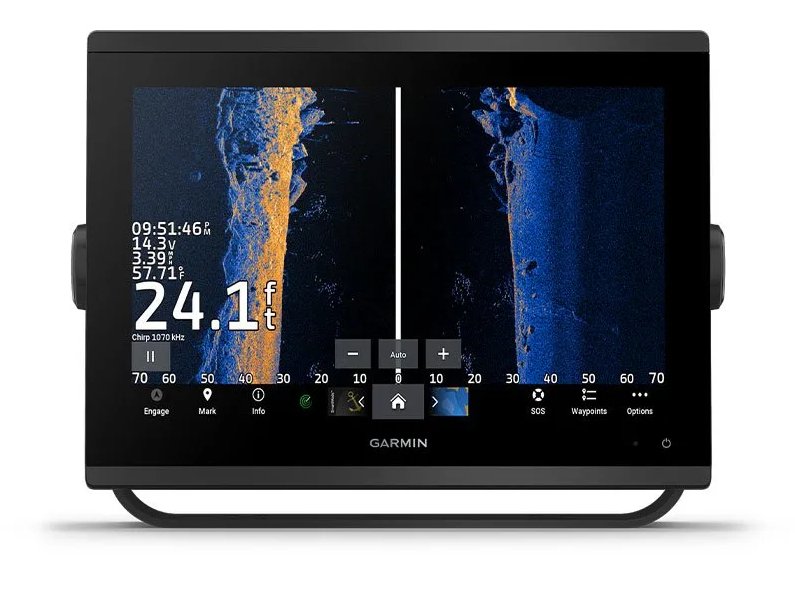

Get built-in Ultra High-Definition SideVü and ClearVü scanning sonars with vivid, high-contrast color palettes to help distinguish fish from structure. GPSMAP® X3 series also supports 1 kW CHIRP traditional sonar capabilities. |
|

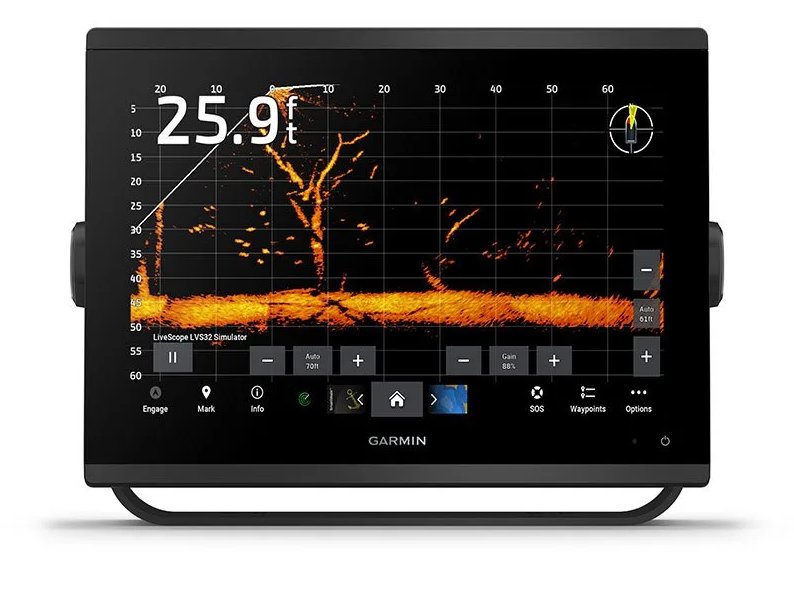

Pair with Panoptix or LiveScope™ easy-to-interpret live sonar (transducer required, sold separately) to see all around your boat in real time. |
Made For Your Helm.
|

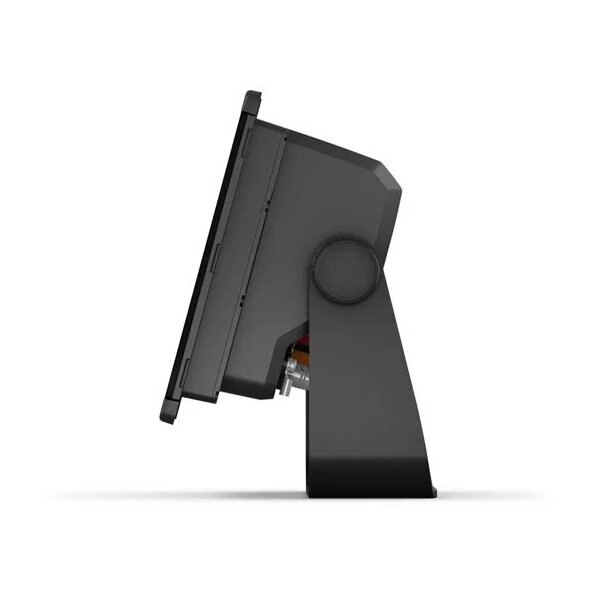

With its added processing power and new slimline design featuring edge-to-edge glass and a smaller unit footprint, it’s easy to retrofit this plotter in a wider range of dash configurations. |
|
New higher-resolution IPS displays for 9” and 12” plotters offer improved sunlight readability and visibility from any angle, with 50% more pixels than previous-generation 9” GPSMAP devices. |
|

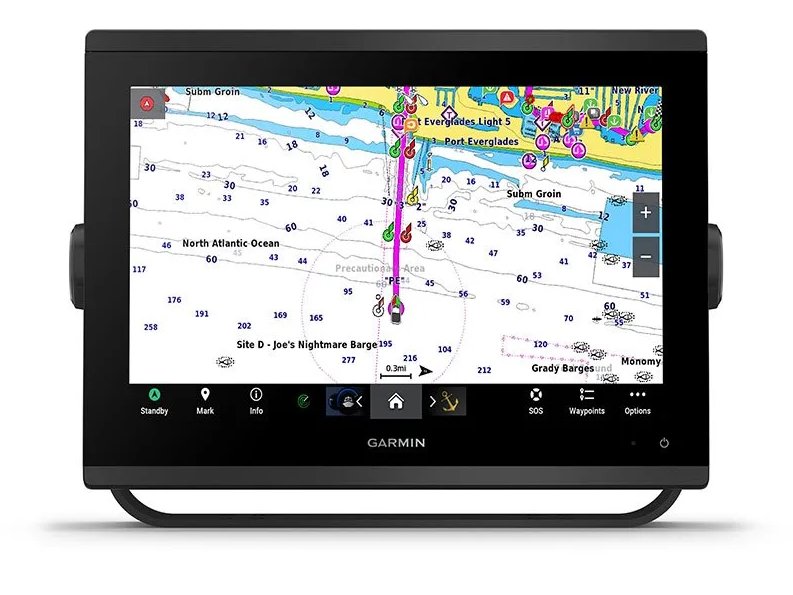

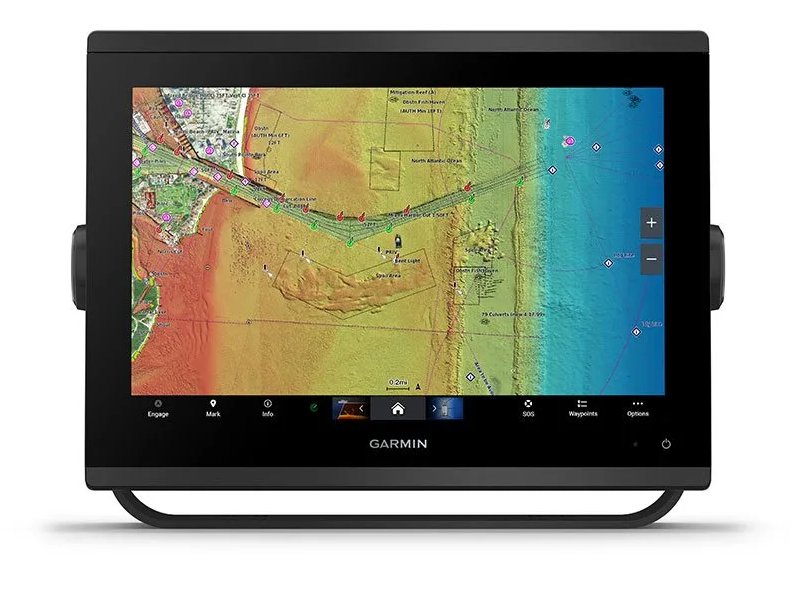

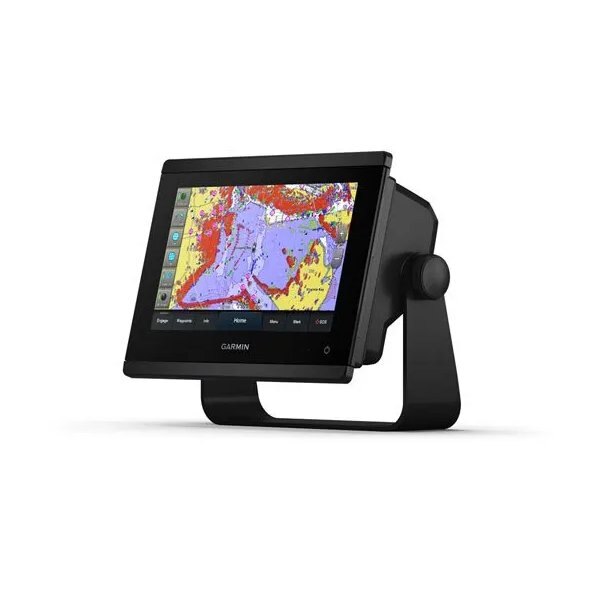

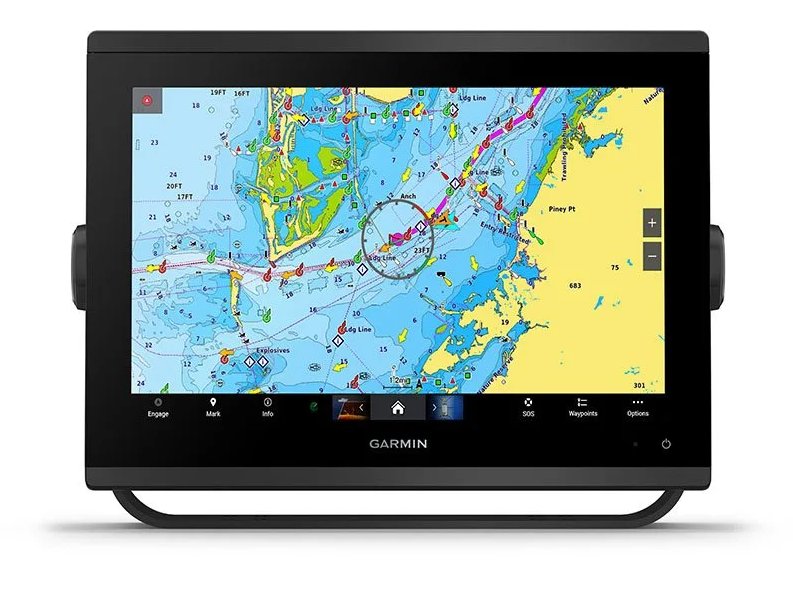

Experience unparalleled coverage and detail with preloaded BlueChart® g3 coastal charts and LakeVü g3 inland maps featuring integrated Garmin and Navionics® content and Auto Guidance3 technology. |
|

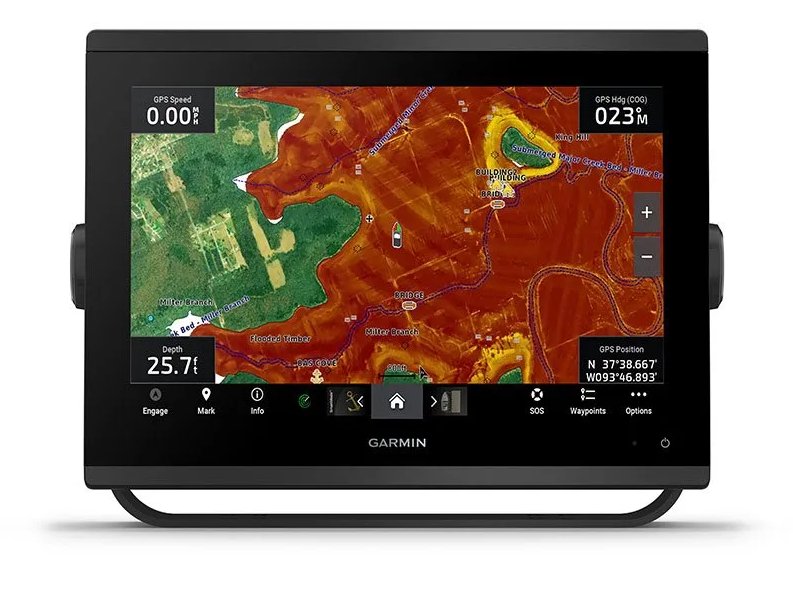

Bring a fresh new look and feel to your chartplotter with optional Garmin Navionics+™ or premium Garmin Navionics Vision+™ cartography featuring integrated coastal/inland content, access to daily updates, Auto Guidance+™ technology2 and more. |
|

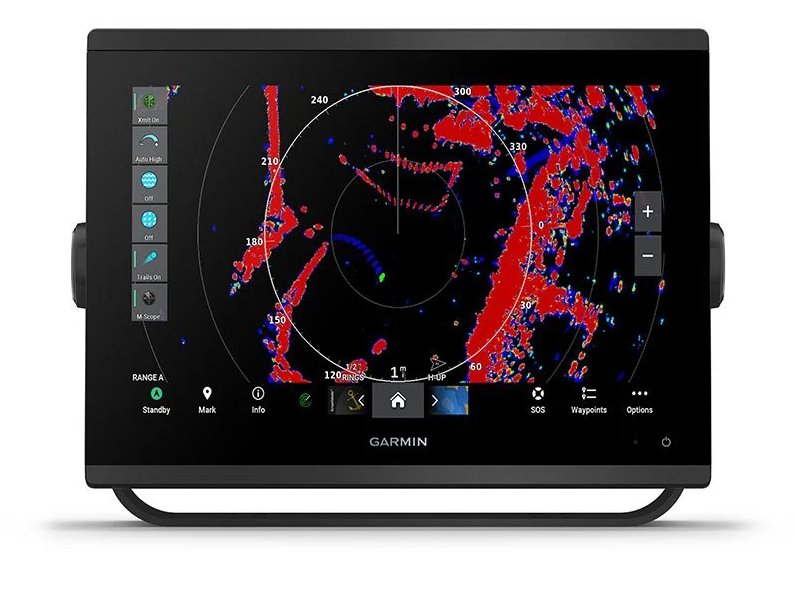

To help you avoid weather and traffic on the water, the compact 4 kW GMR™ 18 HD+ dome radar is available as a bundled option with your GPSMAP chartplotter/sonar package. |
Sail And Navigate With Ease.
|

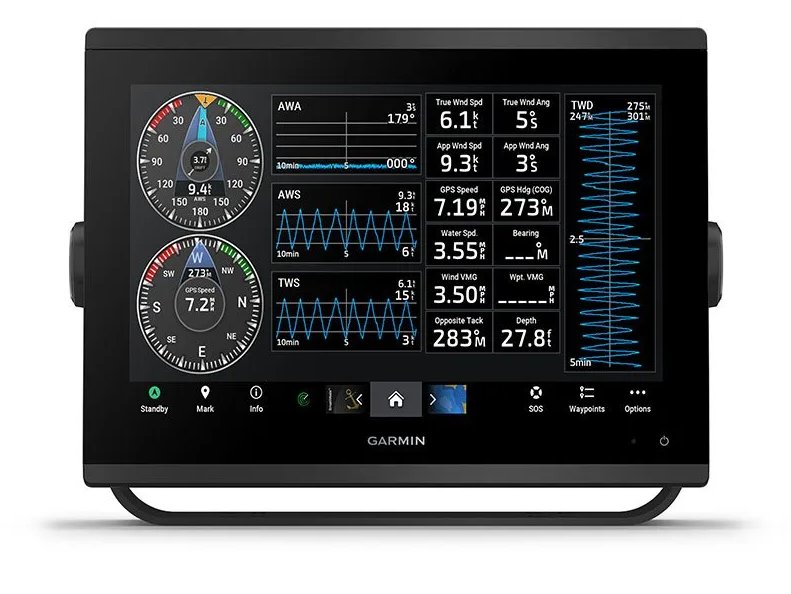

View laylines, race start line guidance, enhanced wind rose, heading and course-over-ground lines, true wind data fields and tide/current/time slider, wind angle, set and drift, wind speed, polars and more3. |
|
These optional charts offer the best of Garmin and Navionics® data, Auto Guidance3 technology and other premium navigation features. |
|

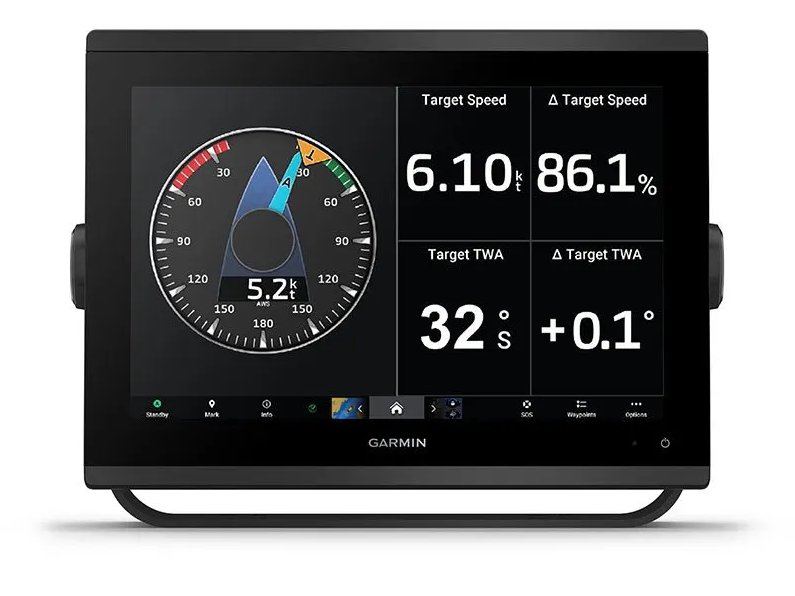

Use the polar table to see key data, including how fast you should go at a certain wind angle and speed — so you know whether you need to adjust sail trim. |
|
If you have multiple compatible Garmin devices on your boat, you can share information — such as maps, user data, radar and IP camera video — among them. |
|

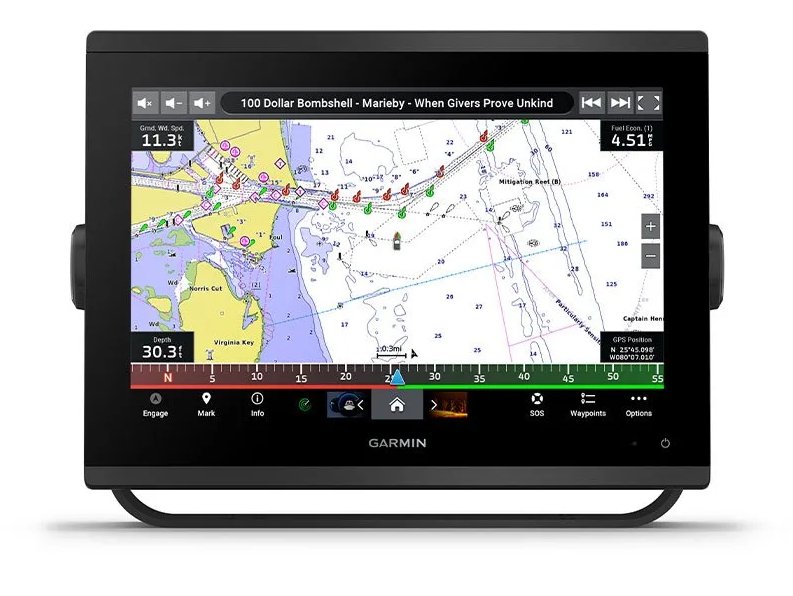

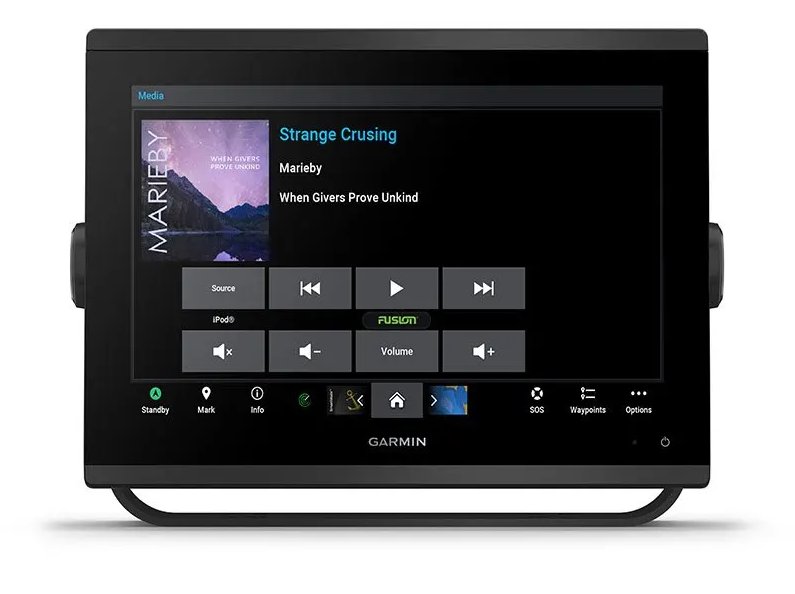

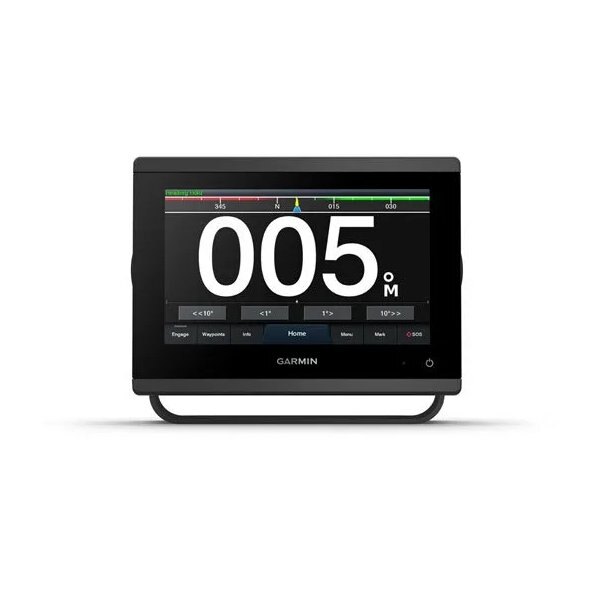

Connect to compatible autopilots, digital switching, weather, Fusion-Link™ audio system, media, VHF, AIS and more from one screen. |
|

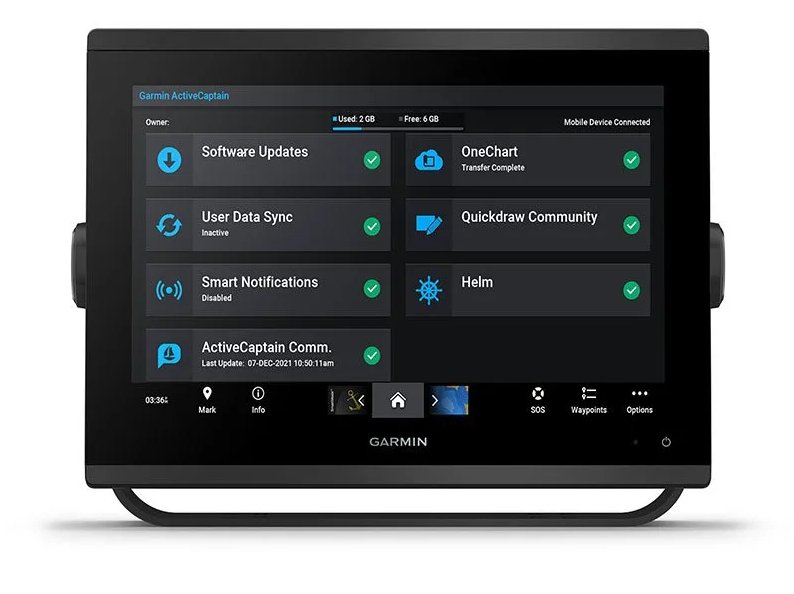

Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications, software updates, Helm, Garmin Quickdraw™ Community data and more4. |
|
Connect with some of your favorite devices, such as quatix® marine watches, gWind™ Wireless 2 transducers, GNX™ Wind marine instruments and wireless remote controls. |
|

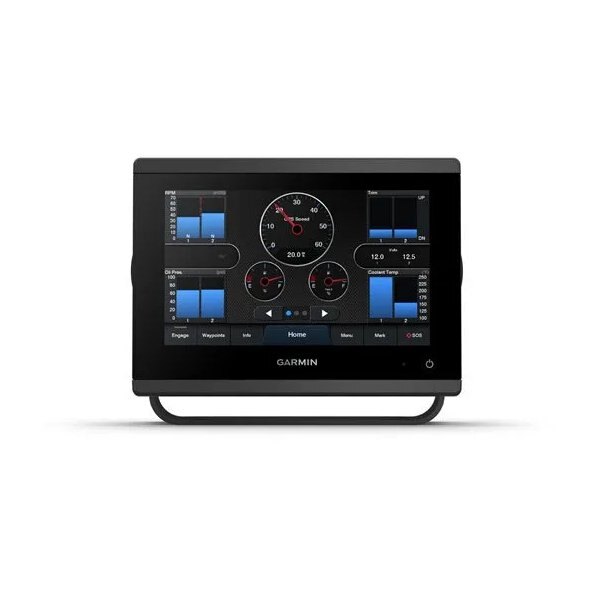

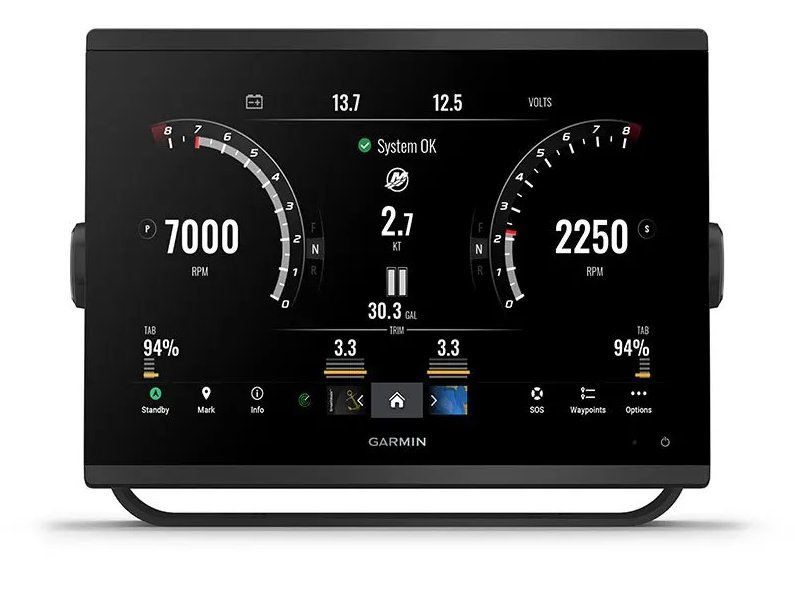

Now you can connect your chartplotter to different kinds of engines, including select Yamaha engines. |
|
This feature brings together all the operations and capabilities of select third-party devices, such as EmpirBus™ digital switching, on one screen. |
General
| Dimension | 7.6" x 5.5" x 2.9" (19.2 x 14.0 x 7.4 cm) |
|---|---|
| Touchscreen | |
| Input | Touchscreen |
| Display Size | 6.1" x 3.5"; 7.0" diagonal (15.4 x 9.1 cm; 17.8 cm diagonal) |
| Display Resolution | 1024 x 600 pixels |
| Display Type | WSVGA |
| Weight |
2.8 lbs (1.3 kg) |
| Waterproof |
IPX7 |

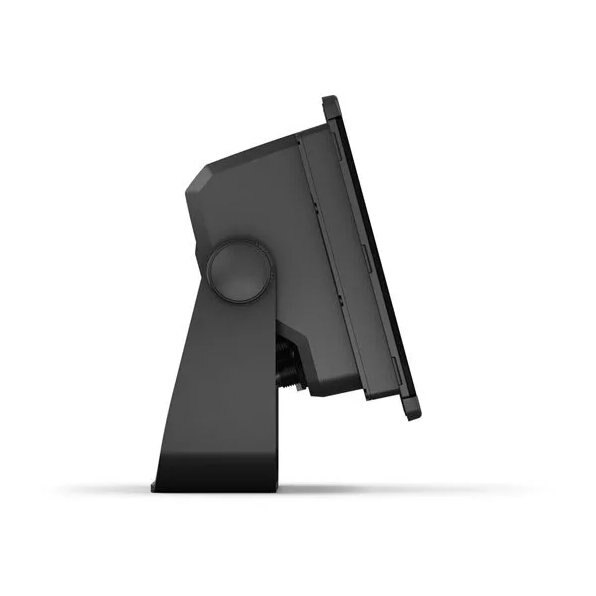

| Mounting Options | Bail, flush or flat (Garmin does not offer any hardware or accessories for a flat-mount installation. Professional tools and knowledge is required.) |
Maps & Memory
| Accepts Data Cards |
2 microSD cards (back of unit) |
|---|---|
| Waypoints |
5000 |
| Track points | 50,000 |
| Tracks | 50 saved tracks |
| Navigation Routes | 100 |
GPS
GLONASS
Galileo
Receiver
10 Hz
Supports WAAS
NMEA 0183 Compatible
NMEA 2000 Compatible
Has Built-in Receiver
Electrical Features
| Power Input | 10 to 32 Vdc |
|---|---|
| Typical current draw at 12 Vdc | 1.18 A |
| Maximum current draw at 12 Vdc | 2.96 A |
| Maximum power usage at 10 Vdc | 35.9W |
Tide Tables
LakeVu (inland)
BlueChart (coastal)
Built-in Auto Guidance
TOPO
LakeVü G3
LakeVü G3 Ultra
Standard Mapping
Garmin Navionics+™
Raster Chart Support
Garmin Quickdraw Contours
Garmin Navionics Vision+™
AIS
DSC
OneHelm Support
Sailing Features
Spoken Audio Alerts
Smart Mode Compatible
ActiveCaptain® Compatible
Wireless Remote Compatible
GCV Black Box Sonar Support
GSD Black Box Sonar Support
Supports Fusion-Link™ Compatible Radios
GRID (Garmin Remote Input Device) Compatible
Sonar Features & Specifications
| Power output | 1 kW |
|---|---|
| Traditional sonar (dual frequency/beam) | built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP) |
| ClearVü | built-in 260/455/800/1000/1200 kHz |
| SideVü | built-in 260/455/800/1000/1200 kHz |

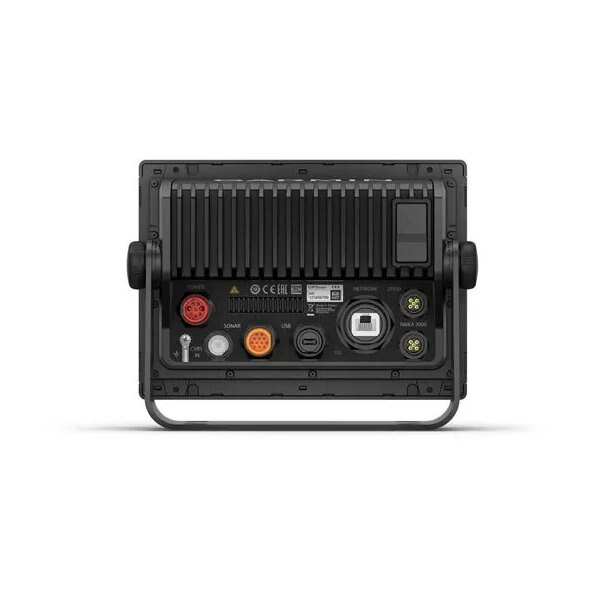

Connections
| NMEA 2000 ports | 1 |
|---|---|
| Connections NMEA0183 Input Ports |
1 |
| NMEA 0183 input (Tx) ports | 1 |
| Video input ports |
1 (BNC composite) |
| J1939 ports | 1 |
| Garmin Marine Network Ports |
1 |
| 12-pin transducer ports | 1 |
In The Box
|
|
With 18 HD+ Radar Above contents plus:
|
Model
010-02365-03
Category Name
Boat
Year
2024
Sale Type
New
Manufacturer
Garmin
Quantity
1
