Garmin ECHOMAP™ UHD 64cv
Call for Price
Overview
Specifications
take fishing to the next level.
boat connected.
general
maps & memory
sensors
built-in maps
optional map support
chartplotter features
sonar features & specifications
connections
electrical features
in the box
|

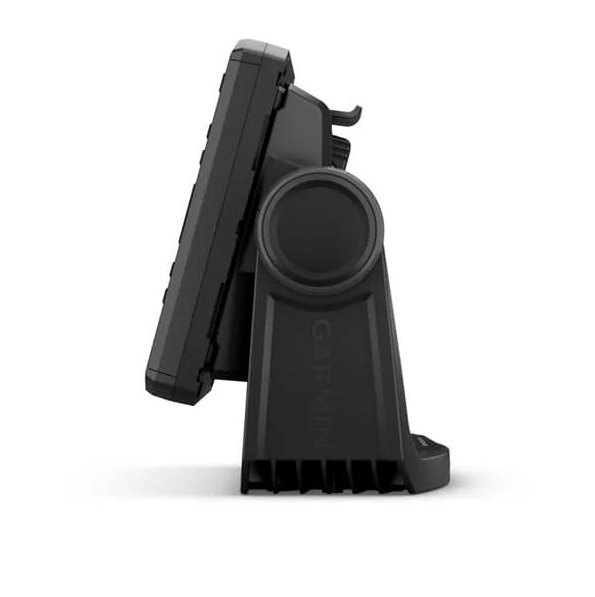

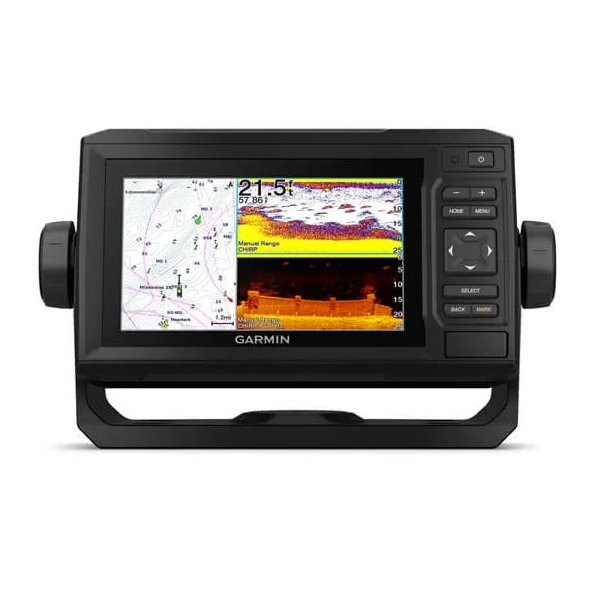

JOIN THE CLUB. FIND MORE FISH. The sunlight-readable 6” chartplotter features a quick-release bail mount, and the transducer bundle adds Ultra High-Definition scanning sonar and CHIRP traditional sonar. |
|
Model
010-02331-01
Category Name
Boat
Year
2024
Sale Type
New
Manufacturer
Garmin
Take Fishing To The Next Level.
|

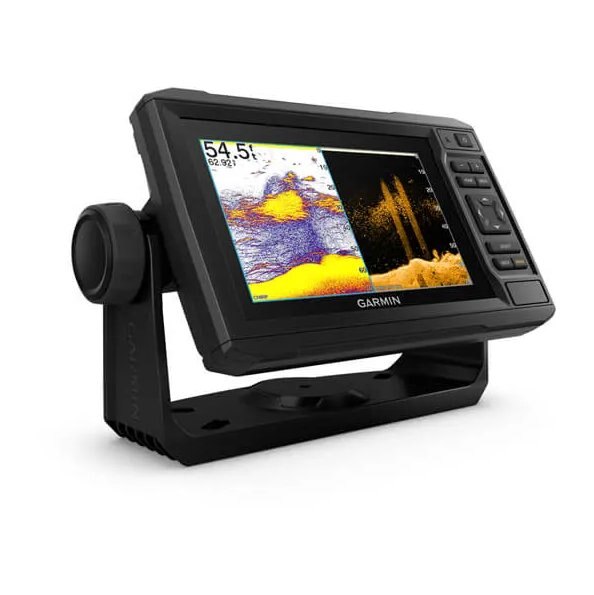

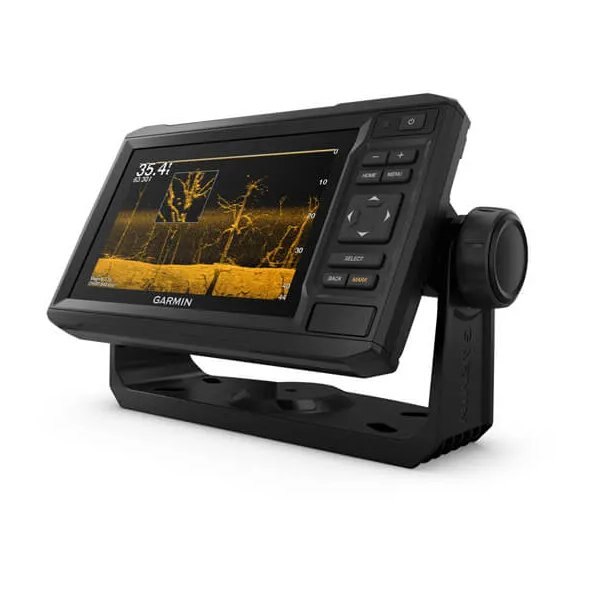

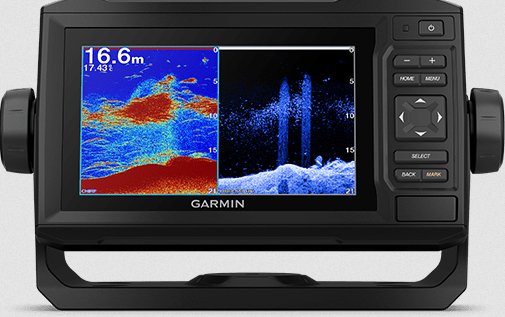

This chartplotter comes with a GT24 transducer for Ultra High-Definition ClearVü scanning sonar, which shows you a crystal-clear image below your boat. Plus, you get Garmin high wide CHIRP traditional sonar for remarkable target separation. |
|

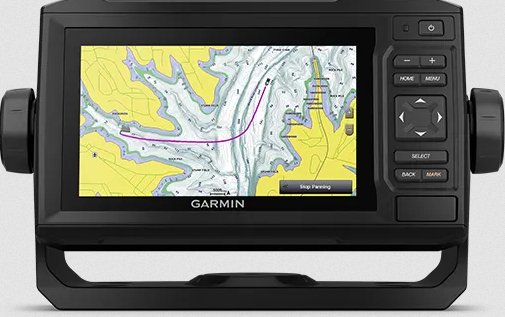

Experience unparalleled coverage and detail with preloaded BlueChart® g3 coastal charts featuring integrated Navionics® data. Charts cover the coastal U.S., including the East and West coasts, Gulf of Mexico and the U.S. and Canadian sides of the Great Lakes. |
|
Create personalized fishing maps on-screen with 1’ contours. Keep the data to yourself, or share it with the Quickdraw Community on Garmin Connect™. |
Boat Connected.
|

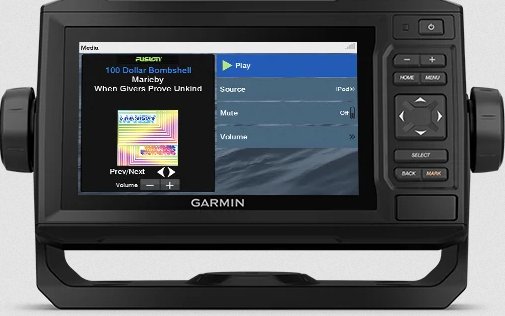

Connect to autopilots, digital switching, weather, FUSION-Link™ audio system, media, VHF, AIS and more from one screen. |
|

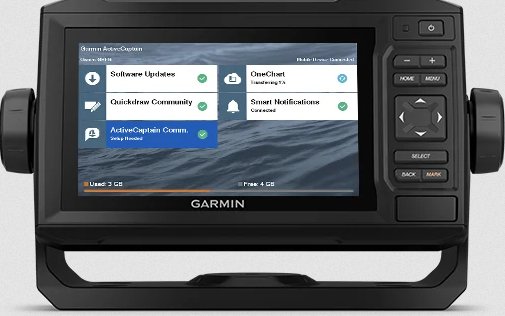

Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications1, software updates, Garmin Quickdraw™ Community data and more. |
General
| Dimension | 8.6" x 5.1" x 2.6" (21.8 x 13.0 x 6.2 cm) |
|---|---|
| Input | Keyed |
| Display Size | 5.4" x 3.1"; 6.2" diagonal (13.7 x 7.7 cm; 15.2 cm diagonal) |
| Display Resolution | 800 x 480 pixels |
| Display Type | WVGA, NP |
| Weight |
1.6 lbs (0.7 kg) |
| Waterproof |
IPX7 |

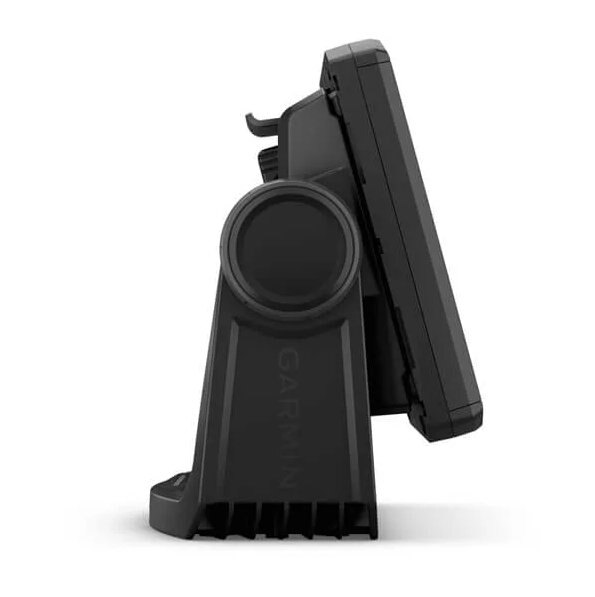

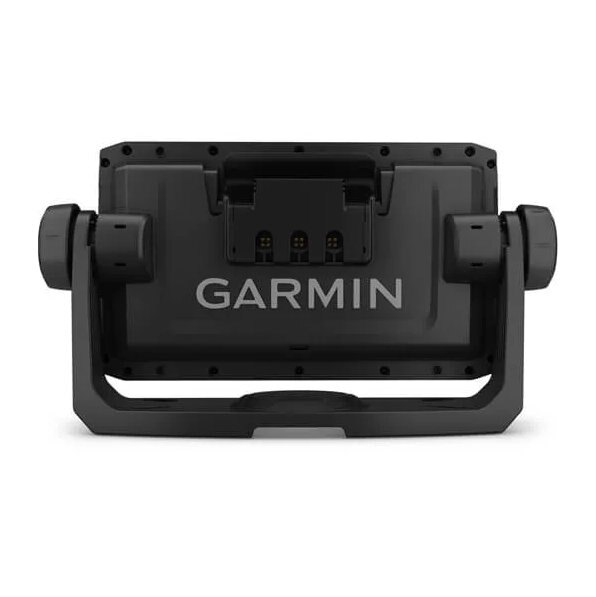

| Mounting Options | Bail or flush |
Maps & Memory
| Accepts Data Cards |
1 microSD card; 32 GB maximum size |
|---|---|
| Waypoints |
5000 |
| Track points | 50,000 |
| Tracks | 50 saved tracks |
| Navigation Routes | 100 |
GPS
Receiver
5 Hz
Supports WAAS
NMEA 0183 Compatible
Has Built-in Receiver
NMEA 2000 Compatible
yes (adapter cable required)
BlueChart (coastal)
(Sounder) Tide Tables
LakeVü G3
(Sounder) TOPO
LakeVü G3 Ultra
Standard Mapping
Garmin Quickdraw Contours
DSC
AIS
Sailing Features
ActiveCaptain® Compatible
Wireless Remote Compatible
Supports Fusion-Link™ Compatible Radios
Sonar Features & Specifications
| Power output | 500 W |
|---|---|
| Traditional sonar (dual frequency/beam) | built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP) |
| ClearVü | built-in 260/455/800/1000/1200 kHz |
Connections
| NMEA 2000 ports | 1 |
|---|---|
| Connections NMEA0183 Input Ports |
1 |
| NMEA 0183 input (Tx) ports | 1 |
Electrical Features
| Power Input | 9 to 18 Vdc |
|---|---|
| Typical current draw at 12 Vdc | 0.7 A |
| Maximum current draw at 12 Vdc | 1.25 A |
| Maximum power usage at 10 Vdc | 12W |
In The Box
|
With Transducer
|
|
Without Transducer
|
Model
010-02331-01
Category Name
Boat
Year
2024
Sale Type
New
Manufacturer
Garmin
Quantity
1
