ID # 36083772
Garmin ECHOMAP™ Ultra 106sv
Call for Price
Overview
Specifications
general
maps & memory
sensors
built-in maps
optional map support
chartplotter features
sonar features & specifications
connections
in the box
better fishing comes built-in.
stay connected on and off the water.
electrical features
Videos
|

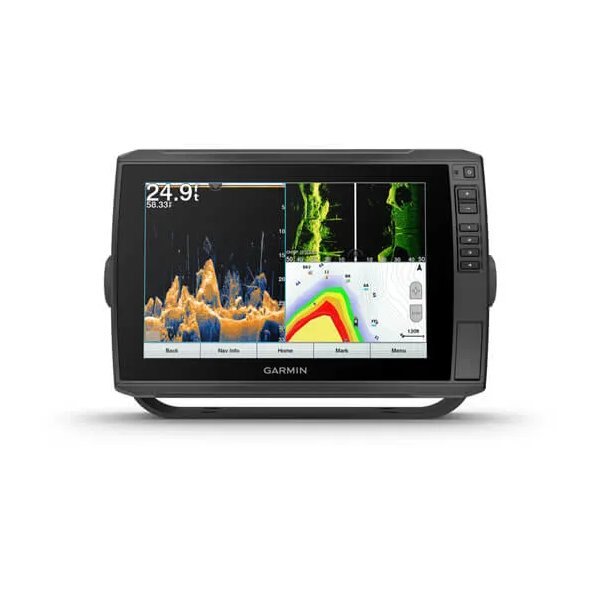

ALL THE TOOLS YOU NEED FOR SUCCESSFUL FISHING The sunlight-readable 10” touchscreen combo features preloaded BlueChart® g3 charts and LakeVü™ g3 maps, and the transducer bundle adds CHIRP traditional and Ultra High-Definition scanning sonars. |
|
Model
010-02527-01
Category Name
Boat
Year
2024
Sale Type
New
Manufacturer
Garmin
General
| Dimension | 11.6" x 7.7" x 3.9" (29.5 x 19.5 x 9.8 cm) |
|---|---|
| Input | Touchscreen with Keyed Assist |
| Display Size | 8.5" x 5.4"; 10" diagonal (21.7 x 13.6 cm; 25.4 cm diagonal) |
| Display Resolution | 1280 x 800 pixels |
| Display Type | WXGA, IPS |
| Weight |
4.0 lbs (1.8 kg) |
| Waterproof |
IPX7 |
| Mounting Options | Bail or flush |
Maps & Memory
| Accepts Data Cards |
2 microSD cards |
|---|---|
| Waypoints |
5000 |
| Track points | 50,000 |
| Tracks | 50 saved tracks |
| Navigation Routes | 100 |
GPS
Receiver
10 Hz
Supports WAAS
NMEA 0183 Compatible
NMEA 2000 Compatible
Has Built-in Receiver
Tide Tables
LakeVu (inland)
BlueChart (coastal)
TOPO
LakeVü G3
LakeVü G3 Ultra
Standard Mapping
Garmin Navionics+™
Garmin Quickdraw Contours
Garmin Navionics Vision+™
AIS
DSC
Sailing Features
ActiveCaptain® Compatible
Supports Fusion-Link™ Compatible Radios
Sonar Features & Specifications
| Power output | 600 W |
|---|---|
| Traditional sonar (dual frequency/beam) | built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP) |
| ClearVü | built-in 260/455/800/1000/1200 kHz |
| SideVü | built-in 260/455/800/1000/1200 kHz |

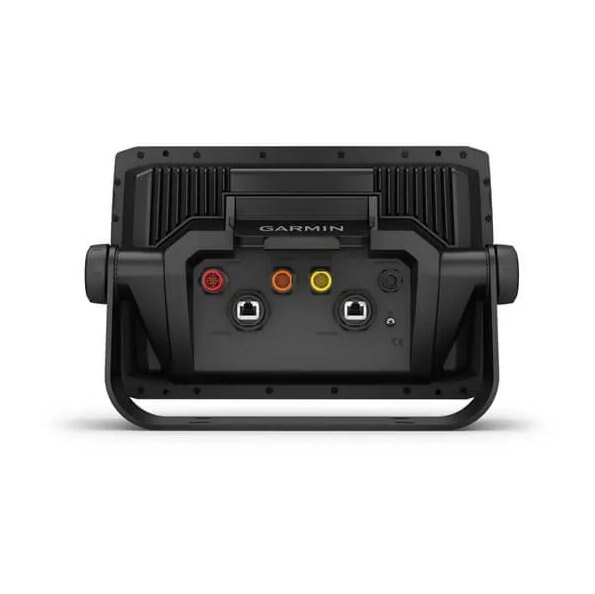

Connections
| Connections NMEA0183 Input Ports |
1 |
|---|---|
| NMEA 0183 input (Tx) ports | 1 |
| Garmin Marine Network Ports |
2 (large connector) |
| 12-pin transducer ports | 1 LVS sonar; 1 scanning sonar |
In The Box
|
Better Fishing Comes Built-in.
|

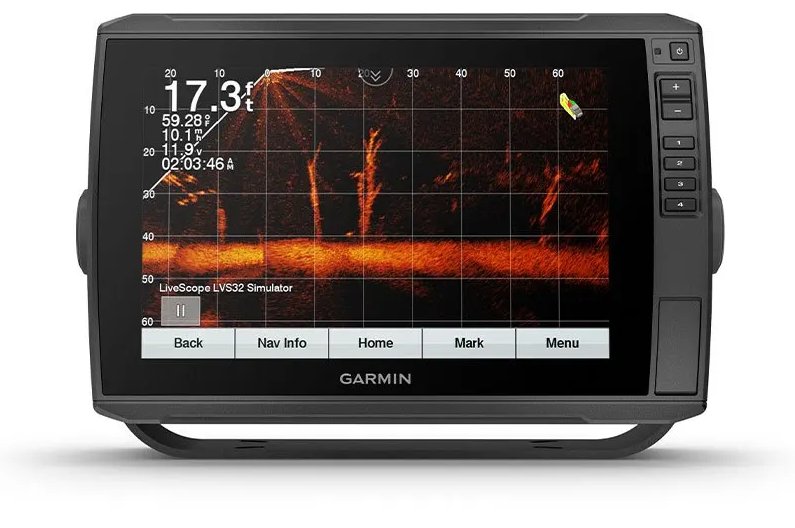

ECHOMAP Ultra supports a variety of Garmin transducers (sold separately), including LiveScope all-seeing live sonar. |
|

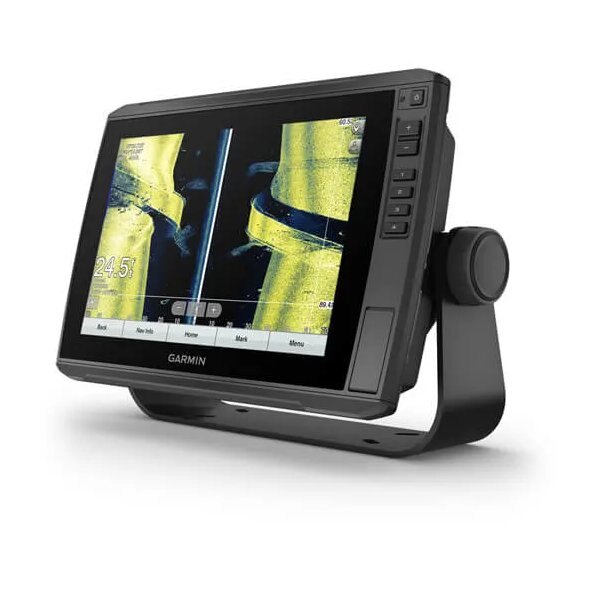

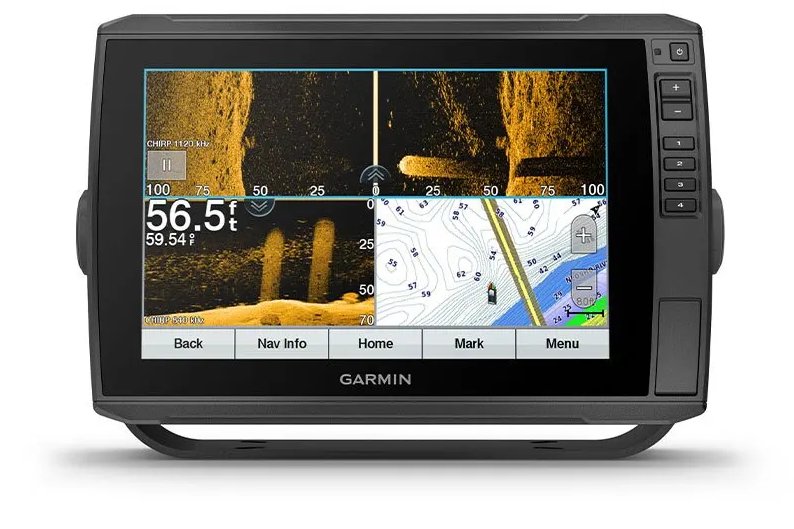

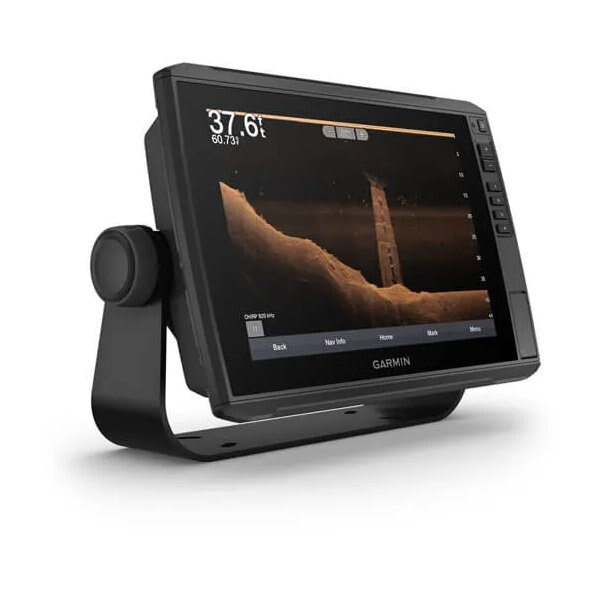

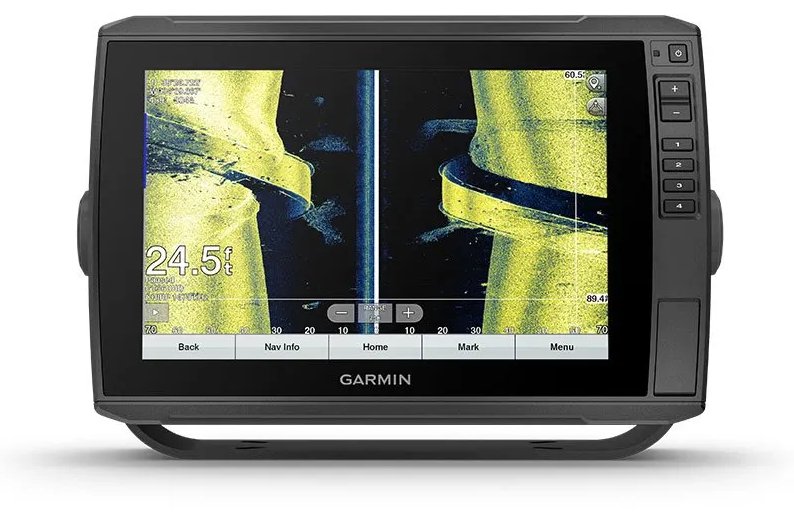

The included GT56 transducer provides Garmin CHIRP traditional sonar and Ultra High-Definition ClearVü and SideVü scanning sonars. With three scanning sonar frequencies and 20% greater range for our UHD SideVü sonar, you’ll get top performance at all depths. |
|
High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure. |
|

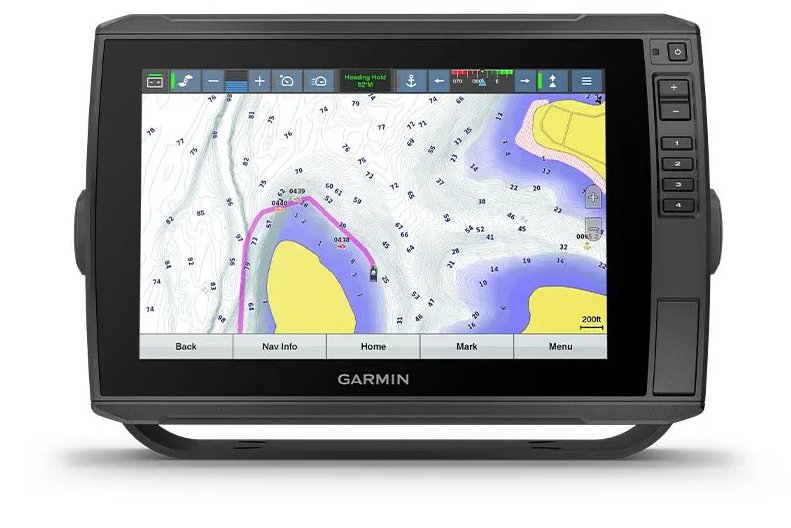

Experience unparalleled coverage and detail with BlueChart g3 coastal charts for the U.S. and Western Canada and LakeVü g3 inland maps for the U.S. — both with integrated Navionics® data and Auto Guidance2 technology. |
|

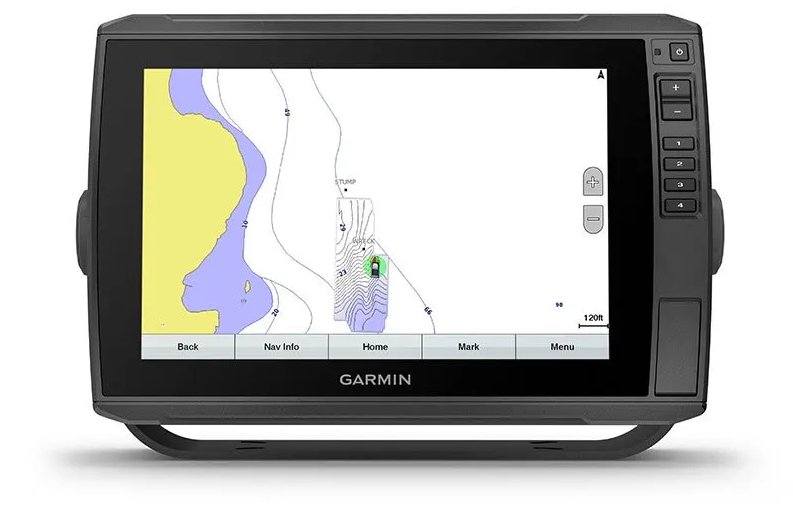

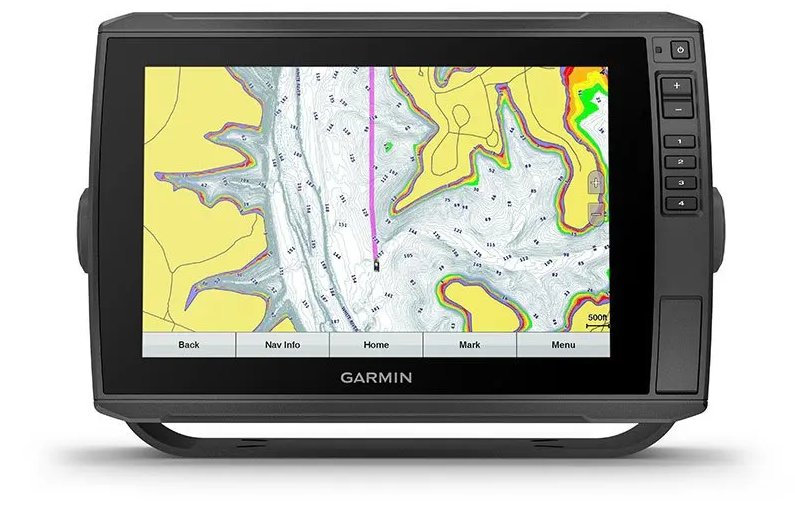

Create personalized fishing maps on-screen with 1’ contours. Keep the data to yourself, or share it with the Garmin Quickdraw™ Community on the Garmin Connect™ app3. |
Stay Connected On And Off The Water.
|
If you have multiple compatible ECHOMAP Ultra 10” and 12” units or ECHOMAP Plus or UHD 7” and 9” units on your boat, you can share information — such as sonar, user data and charts — among them. |
|

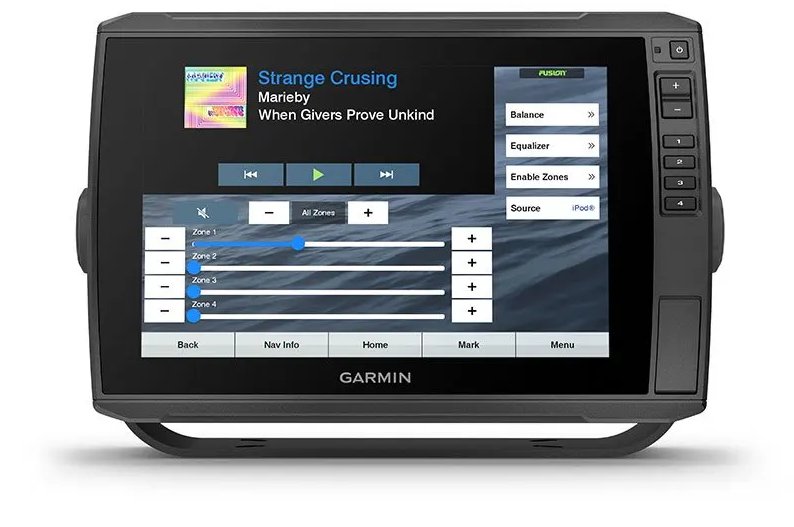

Connect to your compatible autopilots, digital switching, weather, Fusion-Link™ audio system, media, VHF, AIS, engine data, heading sensors — such as the SteadyCast™ sensor — and more from one screen. |
|
Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications, software updates, Garmin Quickdraw Community data and more1. |
|
Take control of the most powerful and efficient trolling motor available4, route it to waypoints, follow tracks and more from the screen of your chartplotter. |
|

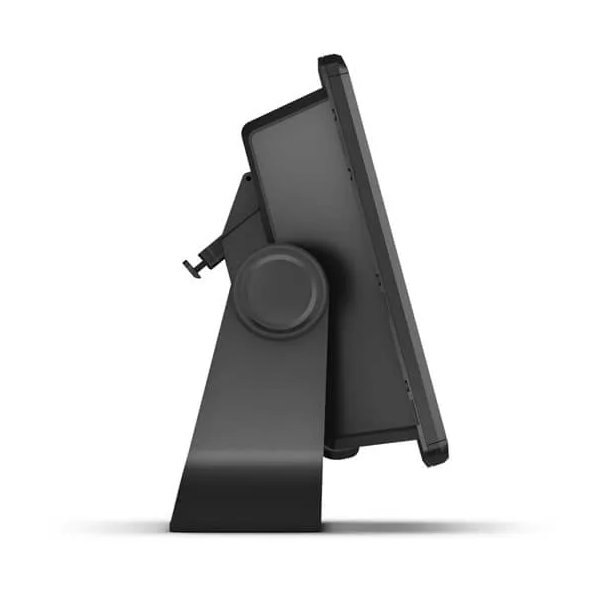

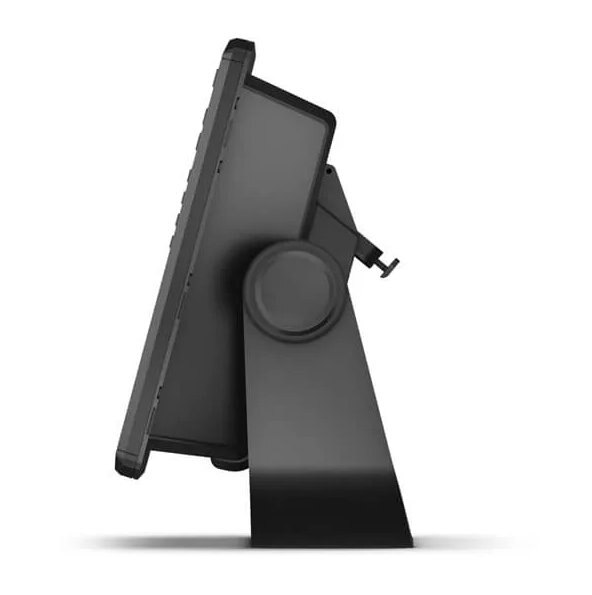

Keep your ECHOMAP Ultra safe and secure. Cords plug directly into the quick-disconnect bail mount, which allows you to quickly install and remove your unit. |
|

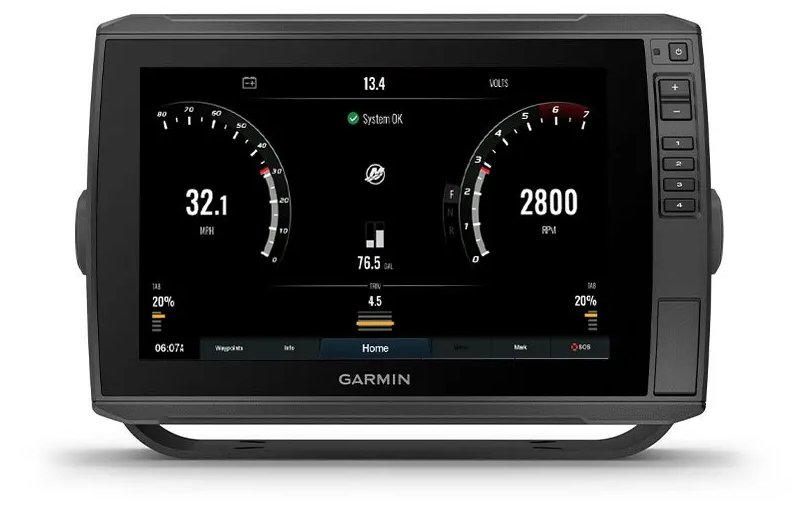

Connect this chartplotter to different kinds of engines — including select Mercury and Yamaha® models — to see RPMs, fuel flow, temperature, trim and other important information at a glance. You may need additional hardware, so be sure to check with your engine manufacturer. |
Electrical Features
| Power Input | 9 to 18 Vdc |
|---|---|
| Typical current draw at 12 Vdc | 2.8 A |
| Maximum current draw at 12 Vdc | 3.0 A |
| Maximum power usage at 10 Vdc | 24.4W |
